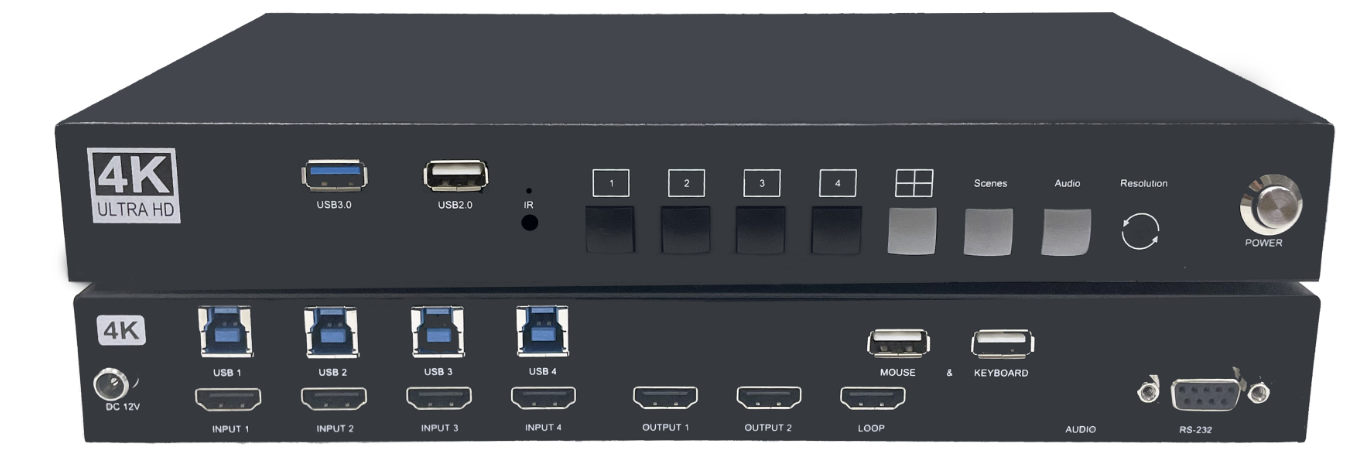

EK3000多画面矩阵KVM（Multi-view KVM Matrix Switcher ）

一、 产品简介

EK3000是一款支持4K-KVM多画面处理器器，是专业化的视频处理与控制设备，能够在超高清分辨率UHDTV的平板电视、投影等显示设备上以多窗口模式同时显示多路高清画面信息。 EK3000采用纯硬件结构设计，无操作系统，整个系统完全封闭式运行，不需要电脑和启动软件等操作, 非常简便, 稳定性高, 输出图形质量好, 稳定性大大高于基于WINDOWS操作系统的“计算机＋板卡”方式和基于嵌入式结构设计、内嵌专用操作系统方式的传统控制器, 上电即可工作，稳定性高。超高清画面分割切换器可接受4路HDMI1.4标准的高清信号，并按用户要求对输入信号进行视窗大小、图像比例等方面的调整和变换，最终输出统一格式的HDMI1.4接口的信号。

EK3000多画面分割切换器无需任何系统或WEB等操控软件,仅用鼠标键盘即可方便进行所有信号快速切换,实现每个窗口的单独缩放，输入输出的分辨率均可以达到4K@30标准。用户可选择单屏4画面同显控制4台电脑窗品大小及鼠标键盘操作，也可以选择双屏双画面异显操作，同时还有一路环出对输入信号源做点对点环出显示。

产品特点：

1、 支持4路HDMI1.4信号输入；

2、 支持3路HDMI1.4信号输出；

3、 支持4路电脑USB/BM输入，2路USB/AM鼠标键盘输入，1路USB2.0和1路USB3.0输入；

4、 支持6种常规分辩率输出，1080P/60/50/30，720P/60,4K/30,1920X1200/60；

5、 支持双屏同显4 窗口，3 窗口，2 窗口，单窗口等多种窗口任意组合模式；

6、 支持双屏异显2 窗口，单窗口等多种窗口组合模式；

7、 支持通过鼠标键盘控制窗口大小、PIP透明度、信号源切换等；

8、 支持通过一套鼠标键盘异步或同步操作4台电脑；

9、 支持U盘、打印机等外围USB设备的连接；

10、 支持鼠标、按键，红外遥控切换信号全屏、4画面，2画面等；

11、 支持鼠标、按键，红外遥控控制场景切换；

12、 支持鼠标、按键，红外遥控循环音频输出及视频环出切换；

13、 支持鼠标、按键，红外遥控循环更改输出分辩率；

一、 鼠标键盘操作说明

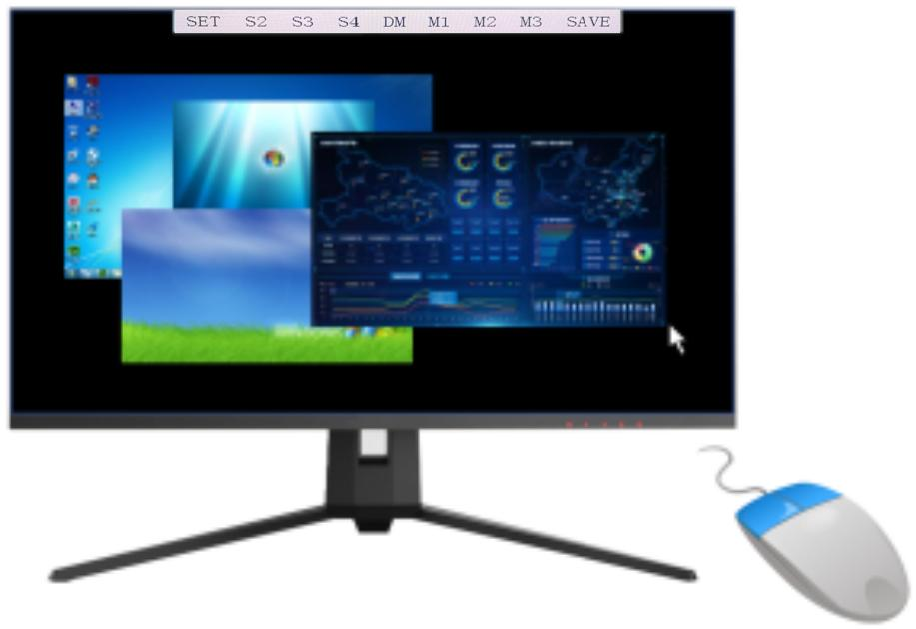

鼠标滚轮：通过双击鼠标滚轴，可以在控制电脑和控制信号窗口大小的功能上任意切换。如下图：当

操作任务档在图像最上层出现时，鼠标功能被定义为对输入信号窗口大小、布局、信号切换、分辩率调整、音频切换等功能，等同于此设备的控制软件。当操作任务档在图像最上层消失时，鼠标键盘功能被定义KVM功能，可以同时操控4台电脑进行不同的工作。

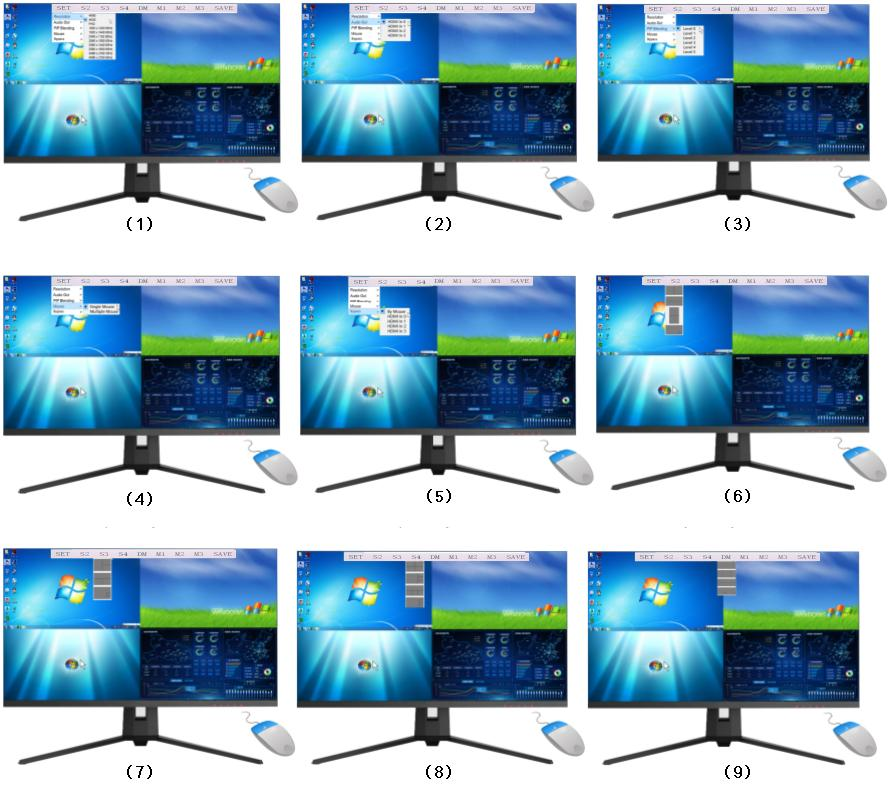

设置界面如下图：

1.Product Profile

MP3000 is a support for 4K-KVM multi-screen processor, is a professional video processing and control equipment, can be in ultra-high definition resolution UHDTV flat-panel TVs, projection and other display devices to display multiple high-definition screen information in multi-window mode at the same time. MP3000 adopts pure hardware structure design, no operating system, the whole system is completely closed operation, do not need a computer and start the software and other operations, very simple, high stability, good quality output graphics, stability is much higher than the WINDOWS operating system based on the “computer + board” and embedded operating systems based on the “computer + board” approach. Structural design, embedded special operating system mode of the traditional controller, power can work, high stability. Ultra-high-definition picture splitter switcher can accept 4 HDMI1.4 standard high-definition signals, and according to user requirements on the input signal window size, image ratio and other aspects of the adjustment and transformation, and ultimately the output of a unified format of the HDMI1.4 interface signals.

MP3000 multi-screen splitter switcher without any system or WEB and other control software, only the mouse and keyboard can be convenient for all the signals to quickly switch to achieve each window of the individual scaling, input and output resolution can reach 4K @ 30 standard. Users can choose a single screen 4 screen with the same display to control the size of the 4 computer window products and mouse and keyboard operations, you can also choose a dual screen dual screen operation, and there is a way to ring out of the input signal source to do point-to-point ring out display.

Product Features:

1, support 4-way HDMI1.4 signal input;

2, support 3-way HDMI1.4 signal output;

3, support 4-way computer USB/BM input, 2-way USB/AM mouse and keyboard input, 1-way USB2.0 and 1-way USB3.0 input;

4, support 6 kinds of conventional resolution output, 1080P/60/50/30, 720P/60,4K/30,1920X1200/60;

5, support for dual-screen display 4 windows, 3 windows, 2 windows, single window and other windows in any combination of modes;

6、Support dual-screen iso-display 2 windows, single window and other window combination mode;

7, support through the mouse and keyboard control window size, PIP transparency, signal source switching;

8, support through a set of mouse and keyboard asynchronous or synchronous operation of 4 computers;

9, support for U disk, printer and other peripheral USB device connection;

10, support for the mouse, keys, infrared remote control to switch the signal full screen, 4 screen, 2 screen, etc.;

11, support for the mouse, keys, infrared remote control control scene switching;
