EK1604H HDMI+USB多画面分割KVM切换器（HDMI+USB Multi-View KVM Switch）

EK1604H/EK1609H HDMI+USB多画面分割KVM切换器

通过本产品你只需一套鼠标，键盘和显示器即可操作多台电脑，主要广泛应用于办公，教学，娱乐，军事。信息等众多平台，它为你节省时间，金钱，设备，能源，大大提高你的工作效率，是工作的好帮手。

4端口、9端口HDMI KVM 切换器，屏幕可以单独显示每台服务器，也可以实现屏幕分割功能，一个屏幕可以分割显示，同时显示多个不同服务器内容。

一、产品特征

1）切换器外观精美，易于安装

2）支持Windows X, Apple，MAC Linux, Netware, Unix 等操作系统

3）支持各种2.0USB设备，如U盘，USB打印机等设备

4）支持画面分割功能

5）支持RS232

6）支持多种硬盘录像机（DVR）

7）支持多种不同品牌的USB无线/有线鼠标和键盘

8）支持虚拟显示器功能，减短主机与显示器相互读取时间，实现快速切换视频

9）支持双视频分辨率功能，读取显示器自带最佳分辨率，另可读取KVM自带内置分辩率4K@30Hz

10）LED指示灯或者显示屏指示对应的当前状态的主机

11）带主机自动扫描功能，扫描时间间隔可以自行设置（8-99秒）

12）多种切换方式可以自由选择：红外遥控器、面板按键、自动轮巡切换

13）电源适配器：DC-12V

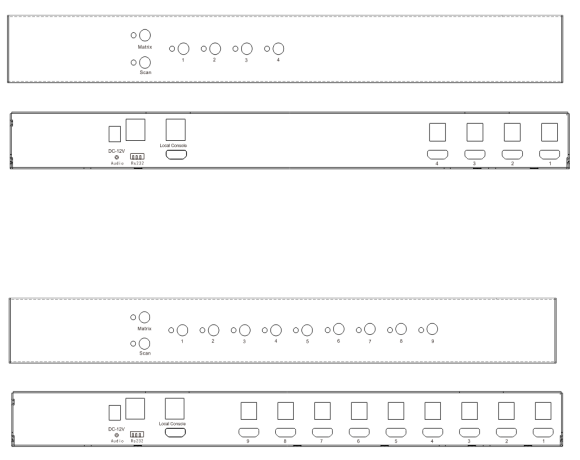

接口示意图

参数列表

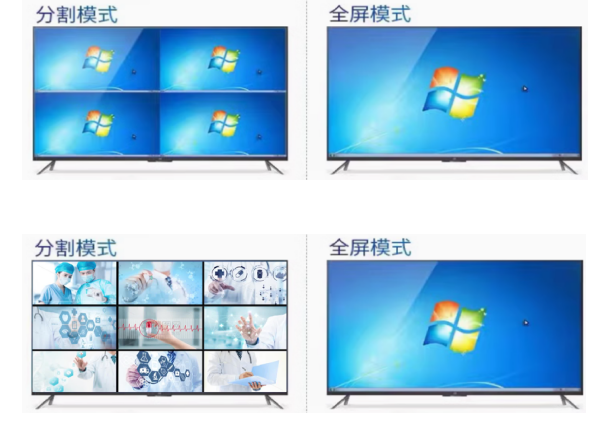

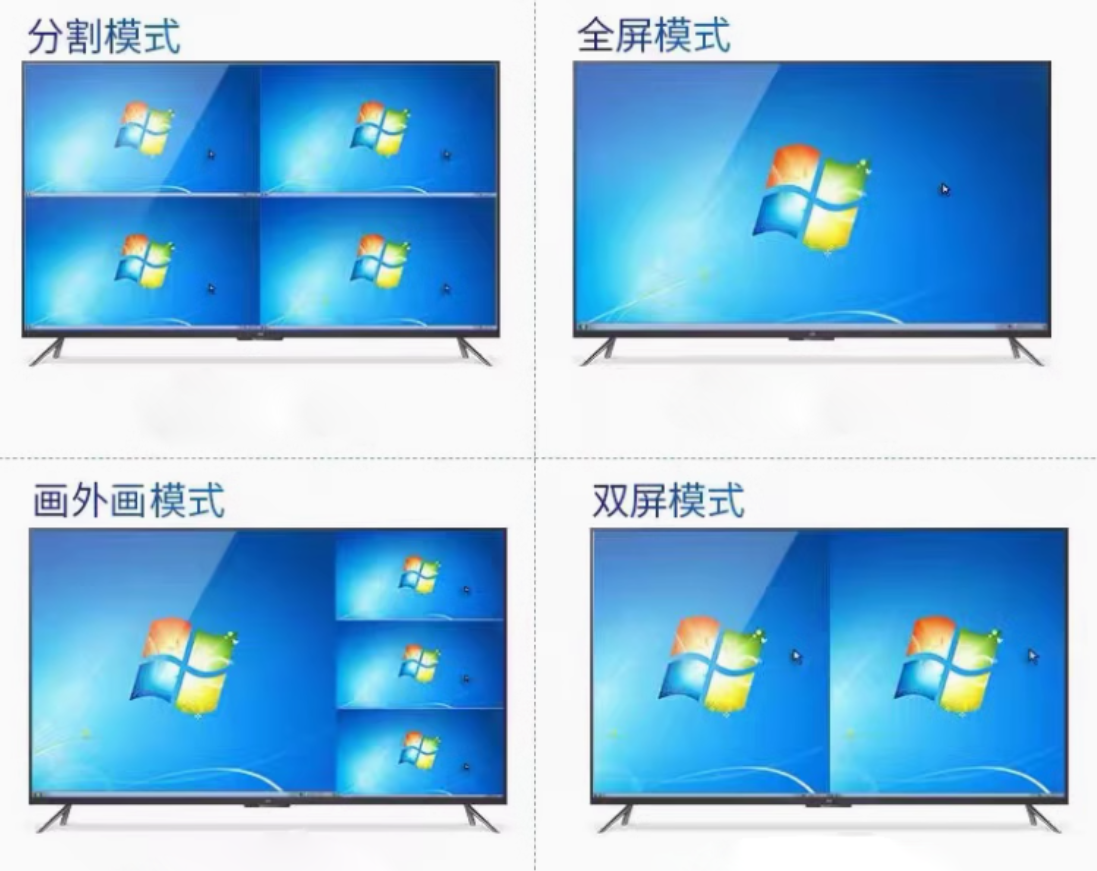

画面分割演示

HDMI KVM Operation Manual

(EK1604H/EK1609H)

HDMI+USB Multi-View KVM Switch

KVM Switch User Manual

Product Overview:

This KVM switch allows you to control multiple computers using just one set of mouse, keyboard, and monitor.Ideal for diverse applications including office operations, educational environments, entertainmentsystems, military installations, and IT infrastructures.

Key Benefits:

Saves time, money, equipment, and energy

Significantly boosts work efficiency

Your essential productivity partner

Technical Specifications:

4-Port & 9-Port HDMI KVM Models Available

Flexible Display Modes:

Single-screen focus on individual servers

Multi-view screen splitting functionality

Simultaneous display of multiple server feeds on one monitor

 一、Product features

1）Sleek Design & Easy Installation: Compact, rack-mountable chassis for seamless integration

2）Cross-Platform Compatibility: Supports Windows, macOS, Linux, Netware, Unix, and embedded systems.3）USB 2.0 Peripheral Support: Compatible with USB flash drives, printers, and other 2.0 devices.

4）Multi-View Split-Screen: Enables simultaneous display of multiple inputs (e.g., 2×2, 4×4 layouts).5）RS232 Serial Control: Integrates with automation systems for remote management.

6）DVR Compatibility: Works with mainstream Digital Video Recorders (DVRs).

7）Universal Input Support: Accommodates USB wired/wireless mice and keyboards from various brands.

8）Virtual EDID Emulation: Reduces handshake latency for faster video switching.

9）Dual-Resolution Mode: Auto-detects display’s native resolution or forces 4K@30Hz via built-in EDID.10）Host Status Indication: LED indicators or OSD (On-Screen Display) show active port status.

11）Configurable Auto-Scan: Cycles through connected hosts at adjustable intervals (8–99 seconds).

12）Flexible Switching Methods: IR remote, front-panel buttons, or scheduled auto-cycling.

13）Power Requirements: 12V DC input (included adapter).
